Rp450.000

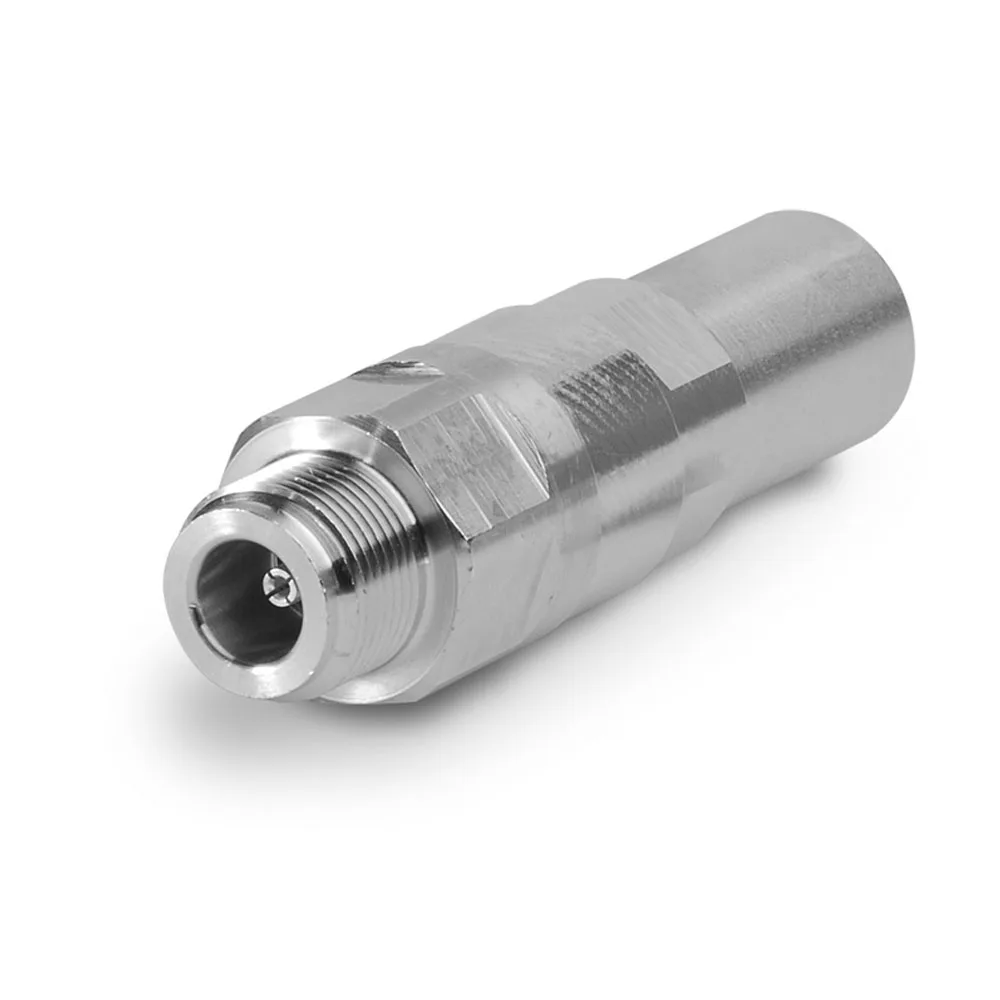

Andrew Commscope L4TNF-PS Connector Type N Female Positive Stop™ – Konektor kabel berukuran 1/2 in LDF4-50A untuk digunakan pada kabel antena repeater.
Your orders are shipped seamlessly between countries
You have the right to return your orders within 30 days.
Your payments are secure with our private security network.
Commscope L4TNF-PS adalah konektor Type N Female Positive Stop™ untuk kabel coaxial berukuran 1/2 inci tipe LDF4-50A. Konektor dari Commscope ini memiliki sambungan yang cocok digunakan di sistem komunikasi, seperti: instalasi radio.
Material berkualitas tinggi yang digunakan pada L4TNF-PS tahan korosi, lembab dan suhu ekstrem sehingga menjamin umur pakai lebih lama.
| General Specifications | ||
| Body Style | Straight | |
| Cable Family | LDF4-50A | |
| Inner Contact Attachment Method | Captivated | |
| Inner Contact Plating | Silver | |
| Interface | N Female | |
| Mounting Angle | Straight | |
| Outer Contact Attachment Method | Ring-flare | |
| Outer Contact Plating | Trimetal | |
| Pressurizable | No | |
| Dimensions | ||
| Length | 73.41 mm | 2.89 in | |
| Diameter | 22.35 mm | 0.88 in | |
| Nominal Size | 1/2 in | |
| Electrical Specifications | ||
| 3rd Order IMD at Frequency | -116 dBm @ 910 MHz | |
| 3rd Order IMD Test Method | Two +43 dBm carriers | |
| Insertion Loss Coefficient, typical | 0.05 | |
| Average Power at Frequency | 0.6 kW @ 900 MHz | |
| Cable Impedance | 50 ohm | |
| Connector Impedance | 50 ohm | |
| dc Test Voltage | 2000 V | |
| Inner Contact Resistance, maximum | 2 mOhm | |
| Insulation Resistance, minimum | 5000 MOhm | |
| Operating Frequency Band | 0 – 8800 MHz | |
| Outer Contact Resistance, maximum | 0.3 mOhm | |
| Peak Power, maximum | 10 kW | |
| RF Operating Voltage, maximum (vrms) | 707 V | |
| Shielding Effectiveness | -130 dB | |
| Frequency Band | VSWR | Return Loss (dB) |
| 50–1000 MHz | 1.023 | 38.89 |
| 1010–2200 MHz | 1.029 | 36.9 |
| 2210–3000 MHz | 1.046 | 32.96 |
| 3010–4000 MHz | 1.074 | 28.95 |
| 4010–6000 MHz | 1.119 | 25.01 |
| Insertion Force Method | MIL-C-39012C-3.12, 4.6.9 | |
| Interface Durability | 500 cycles | |
| Interface Durability Method | IEC 61169-16:9.5 | |
| Mechanical Shock Test Method | MIL-STD-202, Method 213, Test Condition I | |
| Environmental Specifications | ||
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) | |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) | |
| Attenuation, Ambient Temperature | 20 °C | 68 °F | |
| Average Power, Ambient Temperature | 40 °C | 104 °F | |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A | |
| Immersion Depth | 1 m | |
| Immersion Test Mating | Unmated | |
| Immersion Test Method | IEC 60529:2001, IP68 | |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F | |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C | |
| Vibration Test Method | IEC 60068-2-6 | |
| Water Jetting Test Mating | Unmated | |
| Water Jetting Test Method | IEC 60529:2001, IP66 | |
| Packaging and Weights | ||
| Weight, net | 89.63 g | 0.198 lb | |
